Notifications

Bandwidth Manager can send out e-mail notifications to users controlled by its quotas. The notifications are sent automatically when a specific event occurs, for example when a user has used up their quota. Before you setup notifications, you should enable this feature in the global settings and fill the appropriate parameters for sending mail:

E-mail notification settings

Once the notifications have been enabled, you can proceed and define a new notification via Tools - Notifications in the main menu. There are the following types of notifications that can be configured:

  • Transfer rate limit changed sends an e-mail whenever a transfer rate assigned to the rule changes as a result of gradual quota usage. This notification can be assigned to a rule linked with a smooth quota, i.e. a quota whose data transfer rate changes gradually as it is consumed. For example, if a user has a quota of 100 MB and the user’s rule is assigned this notification, the user will be sent several e-mails as the quota is being consumed, an e-mail message for approximately every 10 MB consumed.
  • Quota exceeded sends an e-mail when the rule has used up an assigned quota. This notification can be set for any rule with a quota.
  • Quota reset sends an e-mail when a quota assigned to the rule has been reset. Likewise, this notification can be set for any rule with a quota.
  • Quota boost added sends an e-mail when a quota boost is added. This notification can be set for any rule with a “boosted” quota.

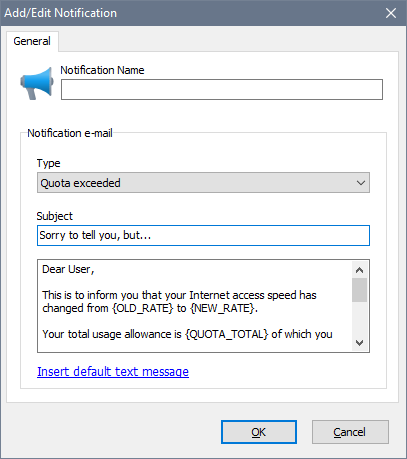

Add/Edit Notification window

You can use the following tags in the e-mail templates:

Tag Description
Tags that can be used with the Transfer rate limit changed, Quota exceeded and Quota reset notification types:
{OLD_RATE} Old transfer rate that was in effect before.
{NEW_RATE} New transfer rate assigned to the rule.
{QUOTA_TOTAL} Quota allowance.
{QUOTA_USED} Used amount of the quota.
{QUOTA_LEFT} Remaining amount of the quota.
{RULE_NAME} The associated rule’s name.
{STREAM_ADDR} User’s IP or MAC address when rule tracking is used.
{WEBINFO_HOST} The name of the server the software is running on.
{WEBINFO_PATH} Path to usage web-report. This makes a clickable URL in the e-mail which lets the users see their usage stats. This tag must follow the server name, e.g. http://{WEBINFO_HOST}/{WEBINFO_PATH} as in the provided default message.
Tag that can be used with the Quota boost added notification type:
{QUOTA_BOOST} The amount added to the quota in a quota boost.

Once a notification has been created, you need to add a quota.

Finally, you need to link a rule with both the quota and notification, and also specify the user’s e-mail address that the notifications should be sent to. A rule can have multiple notifications assigned.

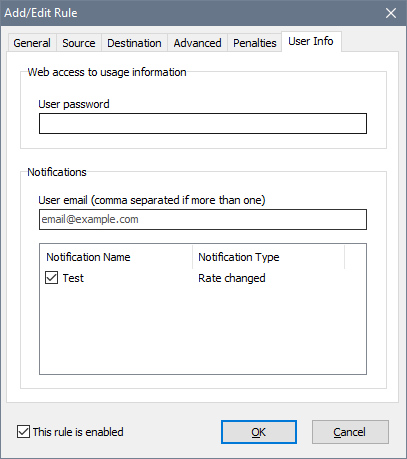

Linking a rule with a notification
In this example, the user will be receiving an e-mail based on the template whenever their rule’s rate changes.
